Create a PDF viewer in Bootstrap 5 with PDF.js
Bootstrap is one of the most popular CSS frameworks that makes it much easier for developers to create website layouts, and it’s one of the first frameworks introducing responsive design and a mobile-first approach.
PDF.js is an open source JavaScript library built by Mozilla, and it allows you to create a full-featured PDF viewer in the browser using JavaScript and the HTML5 canvas element.
In this blog post, you’ll use the latest version of Bootstrap, which is 5.1. Bootstrap 5 has some breaking changes, like removing jQuery as a dependency, and dropping support for IE 10 and 11.
In the first part, you’ll walk through how to render and view a PDF in the browser with PDF.js, and you’ll use Bootstrap for the user interface (UI). In the second part, you’ll look at how to build a fully featured PDF viewer and how to customize the UI with the Nutrient JavaScript PDF library. Our PDF viewer library provides some additional benefits beyond those of PDF.js, including:
- A prebuilt and polished UI for an improved user experience
- 15+ prebuilt annotation tools to enable document collaboration
- Browser-based text editing, page cropping, merging, rotating, and more
- Support for more file types with client-side PDF, MS Office, and image viewing
- Dedicated support from engineers to speed up integration
Installing Bootstrap
Bootstrap has many installation options. In this blog post, you’ll use a content delivery network (CDN) from jsDelivr.
A CDN is a content delivery network or a server that hosts libraries like Bootstrap. The beauty of using a popular CDN is that if a user has been to another website that uses the same CDN to fetch the Bootstrap framework, then the browser will find the cached version and load the website at a much faster rate.
Create a blank index.html
file:
<!DOCTYPE html> <html lang="en"> <head> <title>PDF Viewer with Bootstrap 5 and PDF.js</title> </head> <body></body> </html>
-
Add the
bootstrap.min.css
link before the closing</head>
tag:
<link href="https://cdn.jsdelivr.net/npm/[email protected]/dist/css/bootstrap.min.css" rel="stylesheet" integrity="sha384-1BmE4kWBq78iYhFldvKuhfTAU6auU8tT94WrHftjDbrCEXSU1oBoqyl2QvZ6jIW3" crossorigin="anonymous" />
-
Bootstrap has an open source SVG icon library that’s freely available and licensed under MIT. By adding the Bootstrap Icons CDN, you can access the library and use the icons. Include it after the CSS CDN:
<link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/[email protected]/font/bootstrap-icons.css" />
There are multiple ways to include icons on your website. In this post, you’ll use the icon fonts. They’re easy to use and result in less code to maintain. For example, by just adding the <i class="bi bi-house"></i>
tag to the page, you can use the house
icon to display the house icon.
-
Now, include the JavaScript and Popper.js libraries via a CDN before the closing
</body>
tag:
<script src="https://cdn.jsdelivr.net/npm/@popperjs/[email protected]/dist/umd/popper.min.js" integrity="sha384-7+zCNj/IqJ95wo16oMtfsKbZ9ccEh31eOz1HGyDuCQ6wgnyJNSYdrPa03rtR1zdB" crossorigin="anonymous" ></script> <script src="https://cdn.jsdelivr.net/npm/[email protected]/dist/js/bootstrap.min.js" integrity="sha384-QJHtvGhmr9XOIpI6YVutG+2QOK9T+ZnN4kzFN1RtK3zEFEIsxhlmWl5/YESvpZ13" crossorigin="anonymous" ></script>
Popper.js is a positioning engine for tooltips, popovers, and modals.
Building a PDF viewer with Bootstrap and PDF.js
Now, you’ll build a PDF viewer with Bootstrap and PDF.js.
By the end of this tutorial, you’ll be able to:
- View and display a PDF file in the browser.
- Zoom in and out.
- Navigate to a specific page.
- Navigate to the next and previous pages.
You can access the full code on GitHub.
Creating the UI for the toolbar

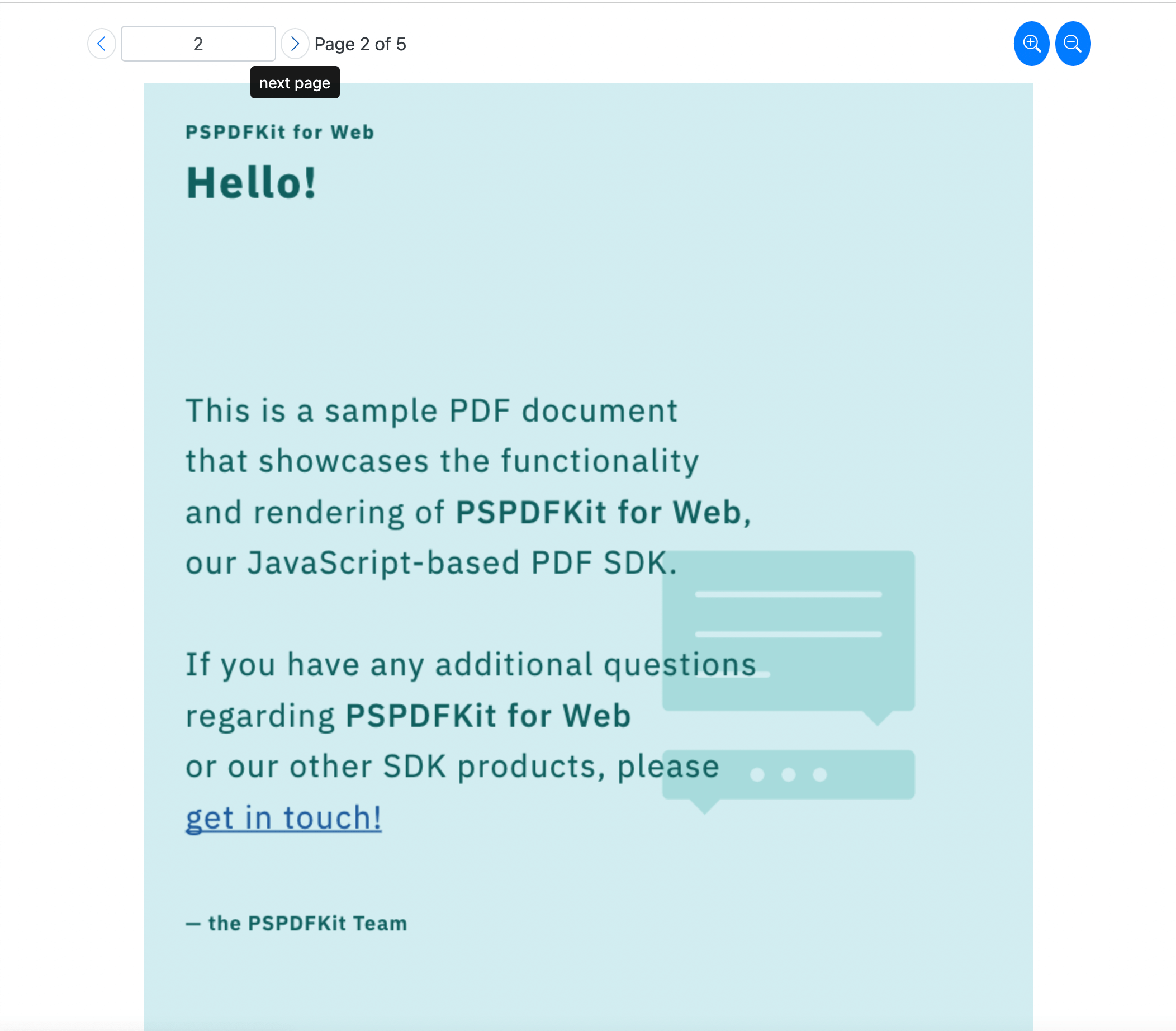

You can see the UI of your page below. You’ll add previous, next, and zoom icons to your page and use an input tag to show the current page number of the document.
To build the UI, you’ll use Bootstrap icons, containers, navs, tooltips, buttons, and flex.
Keep in mind that class properties are reserved for Bootstrap classes. To interact with the PDF.js library, you’ll access the elements via their ID attributes.
-
First off, wrap your site contents with the
container
class. This class is one of the building blocks of creating a responsive grid layout with Bootstrap:
<div class="container"> <!-- Rest of the content --> </div>
-
For the toolbar, you’ll use the
nav
andflex
classes and display them inside theul
andli
tags:
<body> <div class="container"> <ul class="nav nav-tabs d-flex justify-content-between align-items-center text-dark p-3" > <li class="nav-item"> <a href="#" class="p-1 border rounded-circle" id="prev_page" > <i class="bi bi-chevron-left"></i> </a> <input type="number" id="current_page" value="1" class="d-inline form-control" /> <a href="#" class="p-1 border rounded-circle" id="next_page" > <i class="bi bi-chevron-right"></i> </a> Page <span id="page_num"></span> of <span id="page_count"></span> </li> <li class="nav-item"> <button class="rounded-circle p-2 border-0 btn btn-primary" id="zoom_in" > <i class="bi bi-zoom-in"></i> </button> <button class="rounded-circle p-2 border-0 btn btn-primary" id="zoom_out" > <i class="bi bi-zoom-out"></i> </button> </li> </ul> </div> </body>
You used the chevron left, chevron right, zoom in, and zoom out icons from the Bootstrap icons library.
-
After the toolbar, all you need to do is add the
canvas
element to render the PDF file via PDF.js:
<div class="container"> <!-- toolbar --> <canvas id="canvas" class="d-flex flex-column justify-content-center align-items-center mx-auto" ></canvas> </div>
This will position the canvas element in the middle of the page.
-
Finally, to make your application more accessible, you’ll add tooltips to the icons. You can check out the documentation for Bootstrap tooltips to learn more about them.
Basically, tooltips are small popup boxes that appear when you hover over an element. They’re useful for providing additional information about an element. To get started, you’ll need to add the:
-
title
property, which becomes the content of the tooltip. -
data-bs-toggle="tooltip"
property. -
data-bs-placement="top"
property to position the tooltip at the top. You can also position the tooltip at thebottom
,left
, andright
.
<a href="#" class="p-1 border rounded-circle" id="prev_page" title="previous page" data-bs-toggle="tooltip" data-bs-placement="bottom" > <i class="bi bi-chevron-left"></i> </a>
To enable tooltips, you need to add the following code to your custom JavaScript file:
// script.js const tooltipTriggerList = [].slice.call( document.querySelectorAll('[data-bs-toggle="tooltip"]'), ); const tooltipList = tooltipTriggerList.map((tooltipTriggerEl) => { return new bootstrap.Tooltip(tooltipTriggerEl); });
This will target all the elements that have a data-bs-toggle="tooltip"
and create a list of them, which you’ll use to create a new tooltip instance for each element.
You can find the full HTML code here:
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8" /> <meta http-equiv="X-UA-Compatible" content="IE=edge" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>PDF Viewer with Bootstrap 5 and PDF.js</title> <!-- Bootstrap CSS --> <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css" /> <!-- Bootstrap Icons --> <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/bootstrap-icons/1.7.2/font/bootstrap-icons.min.css" integrity="sha512-1fPmaHba3v4A7PaUsComSM4TBsrrRGs+/fv0vrzafQ+Rw+siILTiJa0NtFfvGeyY5E182SDTaF5PqP+XOHgJag==" crossorigin="anonymous" referrerpolicy="no-referrer" /> <link rel="stylesheet" href="style.css" /> </head> <body> <div class="container"> <ul class=" nav nav-tabs d-flex justify-content-between align-items-center text-dark p-3 " > <li class="nav-item"> <a href="#" class="p-1 border rounded-circle" id="prev_page" title="previous page" data-bs-toggle="tooltip" data-bs-placement="bottom" > <i class="bi bi-chevron-left"></i> </a> <input type="number" id="current_page" value="1" class="d-inline form-control" /> <a href="#" class="p-1 border rounded-circle" id="next_page" data-bs-toggle="tooltip" data-bs-placement="bottom" title="next page" > <i class="bi bi-chevron-right"></i> </a> <!-- page 1 of 5 --> Page <span id="page_num"></span> of <span id="page_count"></span> </li> <li class="nav-item"> <button class="rounded-circle p-2 border-0 btn btn-primary" id="zoom_in" data-bs-toggle="tooltip" data-bs-placement="bottom" title="zoom in" > <i class="bi bi-zoom-in"></i> </button> <button class="rounded-circle p-2 border-0 btn btn-primary" id="zoom_out" data-bs-toggle="tooltip" data-bs-placement="bottom" title="zoom out" > <i class="bi bi-zoom-out"></i> </button> </li> </ul> <!-- canvas to place the PDF --> <canvas id="canvas" class=" d-flex flex-column justify-content-center align-items-center mx-auto " ></canvas> </div> <!-- PDF.js CDN --> <script src="https://cdn.jsdelivr.net/npm/[email protected]/build/pdf.min.js"></script> <!-- Bootstap JavaScript and Popper.js --> <script src="https://cdn.jsdelivr.net/npm/@popperjs/[email protected]/dist/umd/popper.min.js" integrity="sha384-7+zCNj/IqJ95wo16oMtfsKbZ9ccEh31eOz1HGyDuCQ6wgnyJNSYdrPa03rtR1zdB" crossorigin="anonymous" ></script> <script src="https://cdn.jsdelivr.net/npm/[email protected]/dist/js/bootstrap.min.js" integrity="sha384-QJHtvGhmr9XOIpI6YVutG+2QOK9T+ZnN4kzFN1RtK3zEFEIsxhlmWl5/YESvpZ13" crossorigin="anonymous" ></script> <!-- Custom javascript file --> <script src="script.js"></script> </body> </html>
Interacting with PDF.js
You’ve created your UI with Bootstrap, and now you’ll make it functional by interacting with the PDF.js library.
-
You already created your
canvas
element, so you’ll add the PDF.js CDN to your HTML file. You can download PDF.js manually, clone it from GitHub, or just include it via a CDN. This post uses the CDN from jsDelivr:
<!-- pdf.js CDN --> <script src="https://cdn.jsdelivr.net/npm/[email protected]/build/pdf.min.js"></script>
Place the script
tag before the Bootstrap script
tag.
Loading the PDF
Now, you can work with the pdf.js
library and learn about its methods.
-
Go to your JavaScript file and create a variable to hold the PDF document. Use the
document.querySelector
method to access the DOM elements. Also, create an object to hold the initial state of the application:
// script.js const pdf = 'document.pdf'; const pageNum = document.querySelector('#page_num'); const pageCount = document.querySelector('#page_count'); const currentPage = document.querySelector('#current_page'); const previousPage = document.querySelector('#prev_page'); const nextPage = document.querySelector('#next_page'); const zoomIn = document.querySelector('#zoom_in'); const zoomOut = document.querySelector('#zoom_out'); const initialState = { pdfDoc: null, currentPage: 1, pageCount: 0, zoom: 1, };
Before starting the project, include a PDF file in the project folder and pass the name of the file to the pdf
variable.
PDF.js uses promises under the hood. If you’re not familiar with what a Promise
is, you can read more about it in the MDN docs.
-
Use the
pdfjsLib.getDocument(pdf)
method to load the PDF file, with the parameterpdf
being the path to the PDF file. Then, use the.promise.then()
method to handle the promise. Here, you can access the PDF file and set theinitialState.pdfDoc
to the PDF:
// Load the document. pdfjsLib .getDocument(pdf) .promise.then((data) => { initialState.pdfDoc = data; console.log('pdfDocument', initialState.pdfDoc); pageCount.textContent = initialState.pdfDoc.numPages; renderPage(); }) .catch((err) => { alert(err.message); });

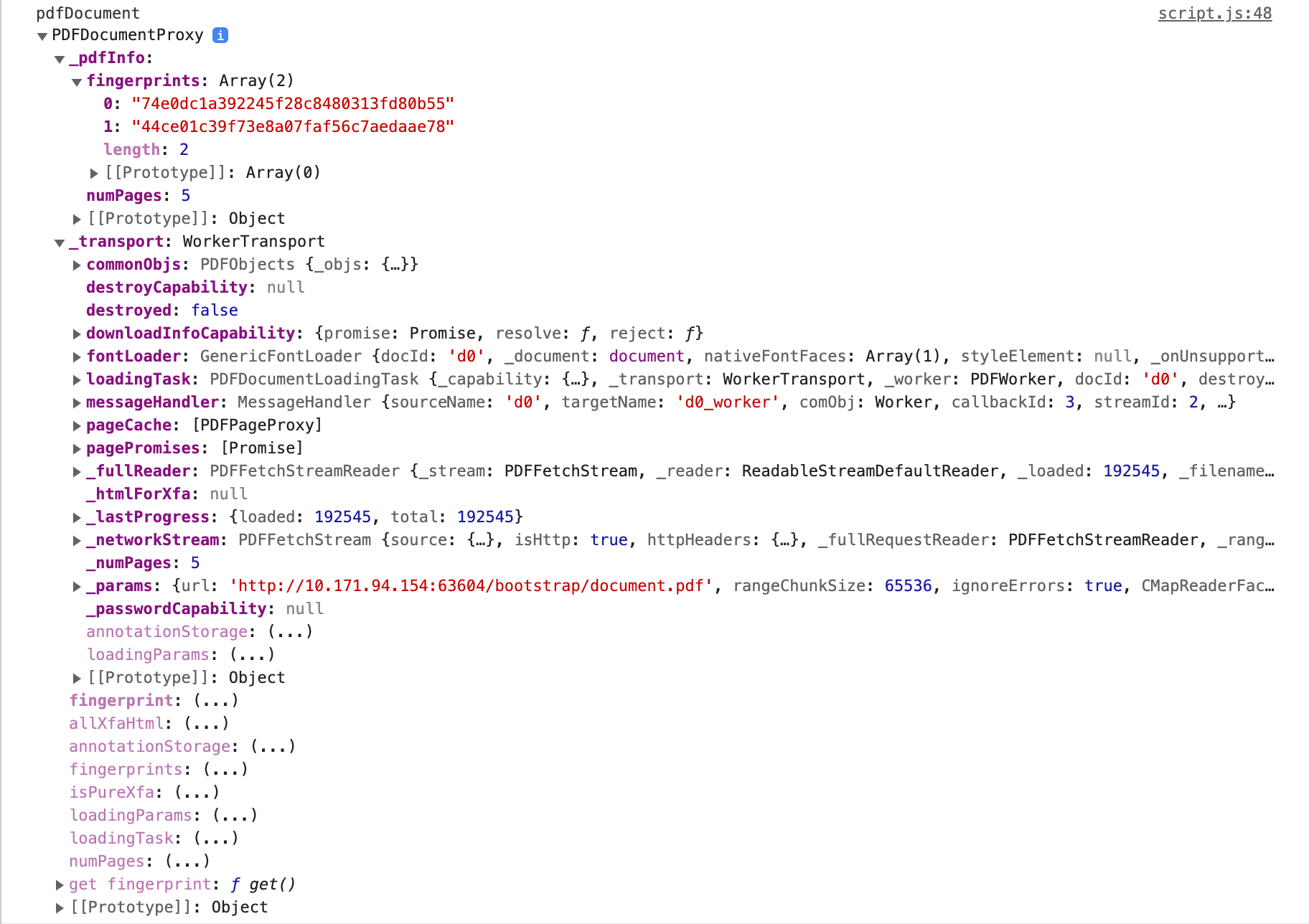

If you console.log
the pdfDocument
variable, you can see the document’s information and the number of pages.
After loading the document, set the text content of the pageCount
to the number of pages in the document.
-
After getting the PDF file, you need to render it in the browser. You’ll create a function named
renderPage()
that will render the current page of your document:
// Render the page. const renderPage = () => { // Load the first page. initialState.pdfDoc .getPage(initialState.currentPage) .then((page) => { console.log('page', page); const canvas = document.querySelector('#canvas'); const ctx = canvas.getContext('2d'); const viewport = page.getViewport({ scale: initialState.zoom, }); canvas.height = viewport.height; canvas.width = viewport.width; // Render the PDF page into the canvas context. const renderCtx = { canvasContext: ctx, viewport: viewport, }; page.render(renderCtx); pageNum.textContent = initialState.currentPage; }); };
-
Now that the PDF has been initialized, you can invoke
getPage()
on the document instance. The returnedPromise
resolves with apage
object that you can use to render the first page of your document. -
To draw something on the canvas, you need to use the
canvas.getContext()
method. This method returns a context object that you can use to draw on the canvas. ThegetViewport(scale)
method returns a viewport object that represents the page at the given scale. Then, you can set the width and height of the canvas to the width and height of the viewport. -
To render the page, use the
render()
method that takes the rendering context as a parameter. -
At the end, you’re setting the
pageNum
’s text content to the current page. This will dynamically update the page number.
Navigating through the PDF pages
You’re done loading and rendering the PDF file. However, you can only see the first page. Now, you’ll work on making the previous and next icons functional when a user clicks on them:
const showPrevPage = () => { if (initialState.pdfDoc === null || initialState.currentPage <= 1) return; initialState.currentPage--; // Render the current page. currentPage.value = initialState.currentPage; renderPage(); }; const showNextPage = () => { if ( initialState.pdfDoc === null || initialState.currentPage >= initialState.pdfDoc._pdfInfo.numPages ) return; initialState.currentPage++; currentPage.value = initialState.currentPage; renderPage(); }; // Button events. previousPage.addEventListener('click', showPrevPage); nextPage.addEventListener('click', showNextPage);
As you can see, the showPrevPage
and showNextPage
functions are very similar. They both check if the current page is the first or last page, and if it is, they do nothing. Otherwise, they decrement or increment the current page and then render the page.
Displaying a specific page
Here, you can specify which page to render based on a user input. You’re using the keypress
event to listen for the enter key
. When the user presses the enter key, you’ll get the page number from the currentPage
input and check if it’s between the ranges of PDF pages. If it is, you’ll set the currentPage
to the desired page and render the page:
currentPage.addEventListener('keypress', (event) => { if (initialState.pdfDoc === null) return; // Get the key code. const keycode = event.keyCode ? event.keyCode : event.which; if (keycode === 13) { // Get the new page number and render it. let desiredPage = currentPage.valueAsNumber; initialState.currentPage = Math.min( Math.max(desiredPage, 1), initialState.pdfDoc._pdfInfo.numPages, ); currentPage.value = initialState.currentPage; renderPage(); } });
For cases when a user types a number that’s either negative or greater than the number of pages, you’ll set the currentPage
to the first or last page, respectively, and display the page.
Adding the zoom feature
You’re done with the navigating through the PDF pages. Now, add the zoom feature:
zoomIn.addEventListener('click', () => { if (initialState.pdfDoc === null) return; initialState.zoom *= 4 / 3; renderPage(); }); zoomOut.addEventListener('click', () => { if (initialState.pdfDoc === null) return; initialState.zoom *= 2 / 3; renderPage(); });
Similar to how it is with navigation, when the user clicks on the zoomIn
or zoomOut
buttons, you’ll increment or decrement the zoom value and then render the page.
You can see the full code below:
const pdf = 'document.pdf'; const pageNum = document.querySelector('#page_num'); const pageCount = document.querySelector('#page_count'); const currentPage = document.querySelector('#current_page'); const previousPage = document.querySelector('#prev_page'); const nextPage = document.querySelector('#next_page'); const zoomIn = document.querySelector('#zoom_in'); const zoomOut = document.querySelector('#zoom_out'); const initialState = { pdfDoc: null, currentPage: 1, pageCount: 0, zoom: 1, }; // Render the page. const renderPage = () => { // Load the first page. initialState.pdfDoc .getPage(initialState.currentPage) .then((page) => { console.log('page', page); const canvas = document.querySelector('#canvas'); const ctx = canvas.getContext('2d'); const viewport = page.getViewport({ scale: initialState.zoom, }); canvas.height = viewport.height; canvas.width = viewport.width; // Render the PDF page into the canvas context. const renderCtx = { canvasContext: ctx, viewport: viewport, }; page.render(renderCtx); pageNum.textContent = initialState.currentPage; }); }; // Load the document. pdfjsLib .getDocument(pdf) .promise.then((data) => { initialState.pdfDoc = data; console.log('pdfDocument', initialState.pdfDoc); pageCount.textContent = initialState.pdfDoc.numPages; renderPage(); }) .catch((err) => { alert(err.message); }); const showPrevPage = () => { if (initialState.pdfDoc === null || initialState.currentPage <= 1) return; initialState.currentPage--; // Render the current page. currentPage.value = initialState.currentPage; renderPage(); }; const showNextPage = () => { if ( initialState.pdfDoc === null || initialState.currentPage >= initialState.pdfDoc._pdfInfo.numPages ) return; initialState.currentPage++; currentPage.value = initialState.currentPage; renderPage(); }; // Button events. previousPage.addEventListener('click', showPrevPage); nextPage.addEventListener('click', showNextPage); // Keypress event. currentPage.addEventListener('keypress', (event) => { if (initialState.pdfDoc === null) return; // Get the key code. const keycode = event.keyCode ? event.keyCode : event.which; if (keycode === 13) { // Get the new page number and render it. let desiredPage = currentPage.valueAsNumber; initialState.currentPage = Math.min( Math.max(desiredPage, 1), initialState.pdfDoc._pdfInfo.numPages, ); currentPage.value = initialState.currentPage; renderPage(); } }); // Zoom events. zoomIn.addEventListener('click', () => { if (initialState.pdfDoc === null) return; initialState.zoom *= 4 / 3; renderPage(); }); zoomOut.addEventListener('click', () => { if (initialState.pdfDoc === null) return; initialState.zoom *= 2 / 3; renderPage(); }); // Tooltip. const tooltipTriggerList = [].slice.call( document.querySelectorAll('[data-bs-toggle="tooltip"]'), ); const tooltipList = tooltipTriggerList.map((tooltipTriggerEl) => { return new bootstrap.Tooltip(tooltipTriggerEl); });
Building a Bootstrap 5 PDF viewer with Nutrient
Nutrient offers a more versatile PDF library that can be used to build a JavaScript PDF viewer. It provides numerous, powerful features, including:
- Improved rendering performance
- PDF editing and annotating
- Image and MS Office file viewing
- Powerful document search
- A rich bookmark UI that enables you to add, remove, and sort bookmarks
- Dark mode support
- Responsive design
- PDF form viewing and designing
- And much more
You can integrate it into your new or existing JavaScript projects with a couple of steps.
So, now it’s time to see how to integrate Nutrient into your JavaScript project.
-
Install the Nutrient library with
npm
:
npm install pspdfkit
-
For Nutrient Web SDK to work, you have to copy the directory containing all the required library files (artifacts) to the
assets
folder. You can use the following command to do this:
cp -R ./node_modules/pspdfkit/dist/ ./assets/
Make sure your assets
directory contains the pspdfkit.js
file and a pspdfkit-lib
directory with the library assets.
Integrating Nutrient into your project
-
Add the PDF document you want to display to your project’s directory. You can use our demo document as an example.
-
Add an empty
<div>
element with a definedheight
to where Nutrient will be mounted:
<div id="pspdfkit" style="height: 100vh;"></div>
-
Include
pspdfkit.js
in your HTML page:
<script src="assets/pspdfkit.js"></script>
-
Initialize Nutrient Web SDK in JavaScript by calling
PSPDFKit.load()
:
<script> PSPDFKit.load({ container: '#pspdfkit', document: 'document.pdf', // Add the path to your document here. }) .then(function (instance) { console.log('PSPDFKit loaded', instance); }) .catch(function (error) { console.error(error.message); }); </script>

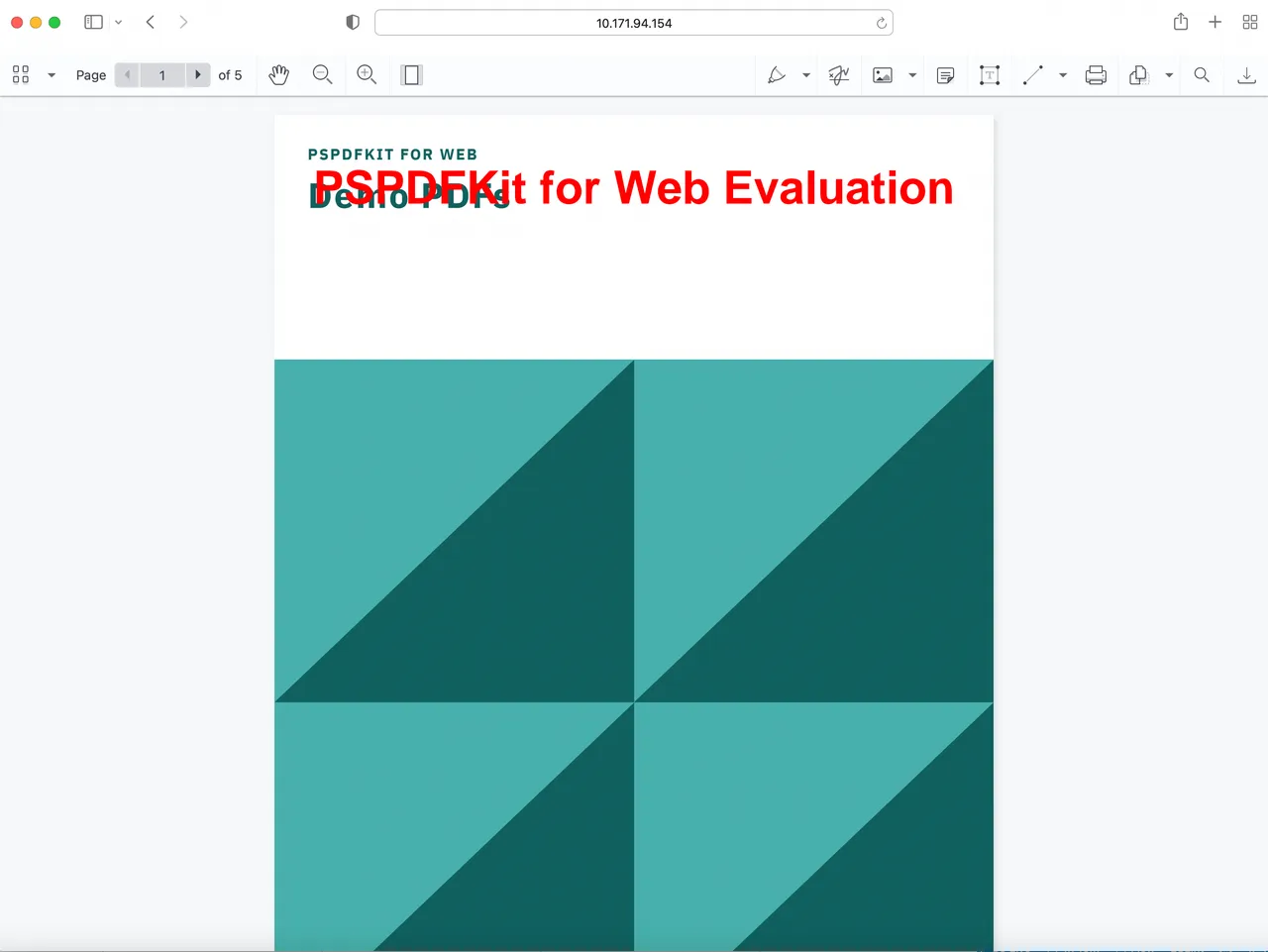

With this, you can now display your PDF document in the browser. As you can see, the Nutrient viewer library comes with a prebuilt, polished, and responsive UI. That’s why you don’t need any fancy framework like Bootstrap to style the viewer. However, you can still customize the UI by adding your own CSS styles.
Customizing the CSS styling in the JavaScript PDF viewer
While working with the Nutrient JavaScript PDF viewer, you have the option to customize the appearance of the PDF viewer.

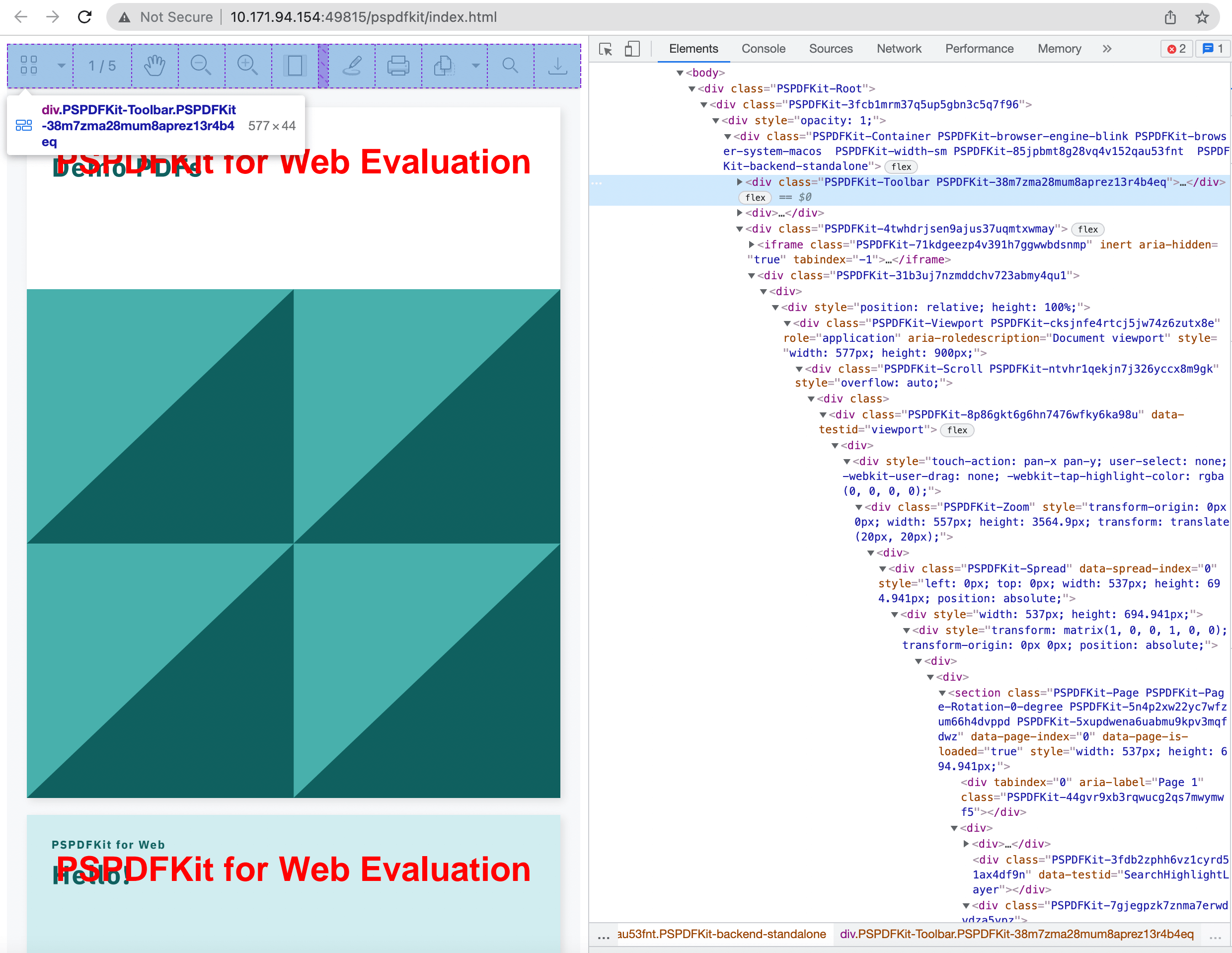

If you inspect the HTML page, you can see there’s a class named .PSPDFKit-Toolbar
that’s used to style the toolbar.
-
Create a new CSS file and overwrite the
.PSPDFKit-Toolbar
class with your own custom styling:
/* style.css */ .PSPDFKit-Toolbar { background-color: #dda15e; }

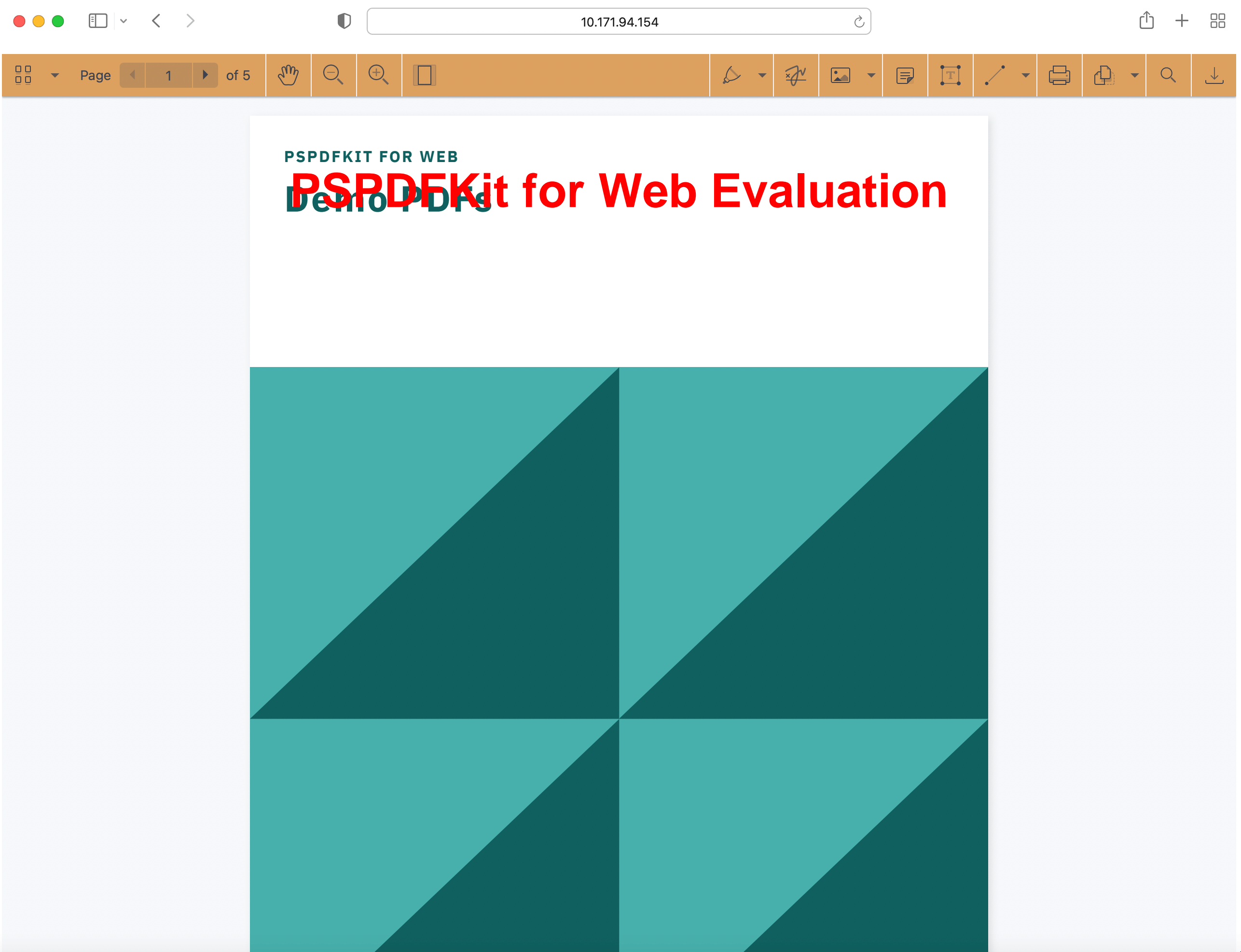

Here, you’re changing the background color of the toolbar to a nice orange color.
-
Configure Nutrient Web SDK to load the newly created stylesheet. You can do this with the configuration interface that you pass to the
load()
method:
<script> PSPDFKit.load({ container: '#pspdfkit', document: 'document.pdf', styleSheets: ['./style.css'], // Add the path to your custom stylesheet. }) .then(function (instance) { console.log('PSPDFKit loaded', instance); }) .catch(function (error) { console.error(error.message); }); </script>
This will inject the stylesheet into Nutrient Web SDK and apply the styling accordingly.
The stylesheets array can load multiple stylesheets; just separate them with a comma.
Launching the website locally

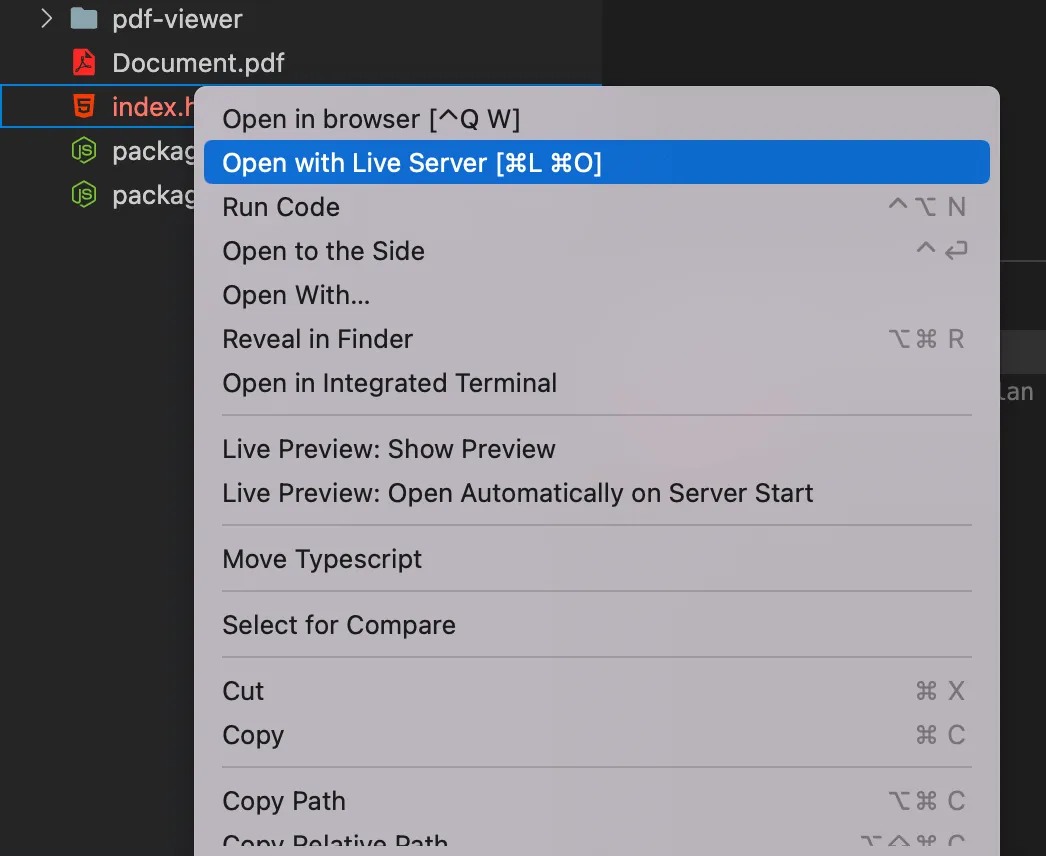

You can use the Visual Studio Code Live Server extension to serve your website. All you need to do is right-click on the HTML file and choose the Open with Live Server option from the context menu.
Serving the website locally
Another option is to use the serve
package as a simple HTTP server. If you want to use that option, follow the steps below.
-
Install the
serve
package:
npm install --global serve
yarn global add serve
-
Serve the contents of the current directory:
serve -l 8080 .
-
Navigate to http://localhost:8080 to view the website.
If you want to download Nutrient manually or integrate it as a module, you can check out our JavaScript getting started guide.
Conclusion
In this tutorial, you first looked at how to build a Bootstrap 5 PDF viewer with the PDF.js library. In the second part, you walked through how to build and customize the viewer with the Nutrient JavaScript PDF viewer.
We created similar how-to blog posts using different web frameworks and libraries:
- How to build an Angular PDF viewer with PDF.js
- How to build a Vue.js PDF viewer with PDF.js
- How to build a React PDF viewer with PDF.js
- How to build an Electron PDF viewer with PDF.js
- How to build a jQuery PDF viewer with PDF.js
- How to build a TypeScript PDF viewer with PDF.js
- How to build a JavaScript PDF viewer with PDF.js
At Nutrient, we offer a commercial, feature-rich, and completely customizable JavaScript PDF library that’s easy to integrate and comes with well-documented APIs to handle advanced use cases. Try it for free, or visit our demo to see it in action.
FAQ
Here are a few frequently asked questions about Bootstrap 5 and PDF.js.
How can I build a PDF viewer using Bootstrap 5 and PDF.js?
You can build a PDF viewer using Bootstrap 5 and PDF.js by combining the layout and styling capabilities of Bootstrap with the PDF rendering functionality of PDF.js. This involves creating a responsive layout with Bootstrap and integrating PDF.js to display PDF documents.
What are the key components needed for a Bootstrap 5 PDF viewer?
Key components include a responsive container for the PDF viewer, navigation buttons, zoom controls, and a canvas element to render the PDF pages using PDF.js.
How do I set up PDF.js in a Bootstrap 5 project?
Include the Bootstrap 5 CSS and JS files in your project, install PDF.js via npm, and initialize PDF.js to load and render PDF documents within the Bootstrap layout.
Can I customize the PDF viewer’s UI using Bootstrap 5?
Yes, Bootstrap 5 provides a wide range of components and utilities that you can use to customize the PDF viewer’s UI. You can create custom navigation controls, modals, tooltips, and other interactive elements to enhance the user experience.
What are some best practices for building a responsive PDF viewer with Bootstrap 5 and PDF.js?
Best practices include using Bootstrap’s grid system for a responsive layout, optimizing PDF rendering for performance, ensuring accessibility, and testing the viewer across different devices and browsers.
