Passwordless document signing: Three-layer security guide

In today’s digital-first world, document signing workflows must balance security with user experience. The challenge becomes even more complex when external signers — people outside your organization who don’t have system accounts — need to access and sign documents securely.

We recently tackled this challenge by developing a sophisticated authentication system that enables external users to securely access our workflow signer interface without requiring login credentials, using a combination of encrypted tokens and multi-factor authentication (MFA).

The challenge: Security meets usability

Traditional document signing workflows face a fundamental tension:

• Security requirements — Documents often contain sensitive information requiring strong authentication.
• User experience needs — External signers shouldn’t need to create accounts or remember passwords.
• Compliance concerns — Organizations need audit trails and verification that the correct person signed.

Our solution needed to satisfy all three requirements while maintaining the seamless experience users expect from modern digital tools.

Prerequisites

Before implementing this authentication system, you’ll need:

• Basic understanding of token-based authentication and encryption
• Experience with Redis for session management
• Familiarity with MFA implementation patterns
• Access to secure email delivery service

Our approach: Layered security architecture

We designed a three-layer security system that maintains both security and usability.

Layer 1: Encrypted token generation

When an administrator configures a signing task, our system generates cryptographically secure tokens for each external signer. Here’s how it works:

// Generate unique file access token for the signer.
string tokenGuid = Guid.NewGuid().ToString();

// Store token with context in secure database table.
string sql = @"INSERT INTO ACCESS_TOKENS
            (TOKEN_ID, DOCUMENT_ID, OWNER_TYPE,
             OWNER_ID, CONTEXT, CREATED_DATE, CREATED_BY)
            VALUES (@token_id, @document_id, @owner_type,
                    @owner_id, @context, @created_date, @created_by)";

The system then encrypts this token, along with tenant and document information, using AES-256 encryption:

// Create data object with all necessary context.
var dataObject = new { fileAccessToken, tenant, documentId = deKey };
string data = JsonConvert.SerializeObject(dataObject);

// Encrypt using environment-specific key.
using (var aes = Aes.Create())
{
    aes.Key = encryptionKey;
    aes.IV = iv;
    aes.Mode = CipherMode.CBC;
    aes.Padding = PaddingMode.PKCS7;
    // ... encryption logic
}

Layer 2: Secure email distribution

Each signer receives an email containing a unique, encrypted link. The link structure ensures:

• Uniqueness — Each token is valid for only one signer and one document.
• Time sensitivity — Tokens can be configured with expiration times.
• Context isolation — Tokens contain only the minimum necessary information.

The email link follows this pattern:

https://domain.com/app/external-signature/{encryptedToken}?standalone=true

Layer 3: Multi-factor authentication (MFA)

When a signer clicks the email link, they don’t immediately access the document. Instead, our React-based MFA component intercepts the request:

// MFA verification component handles the security checkpoint.
export function ExternalSignerMFAVerification() {
  const { state, setVerified, setFailed } = useSignatureMFA();
  const [code, setCode] = useState('');
  const [attempts, setAttempts] = useState(0);

  // Handle verification with attempt limiting.
  const handleSubmit = useCallback(async (e: FormEvent) => {
    if (attempts >= MAX_ATTEMPTS || !isValidCode(code)) return;

    const result = await SignatureMFA.verifyMFA({
      sessionId: state.accessToken,
      code: code.trim(),
    });
    // ... verification logic
  }, [code, attempts]);
}

The backend generates and validates MFA codes using Redis for secure, temporary storage:

// Generate secure MFA code.
const mfaCode = Math.floor(100000 + Math.random() * 900000).toString();
const mfaRedisKey = `signerMfa:${accessToken}`;

// Store with expiration and attempt tracking.
await redisClient.setEx(mfaRedisKey, CODE_EXPIRATION_TIME, JSON.stringify({
  attempts: 0,
  requestCount: 0,
  requests: [{ timestamp: Date.now(), code: mfaCode }]
}));

Complete authentication flow

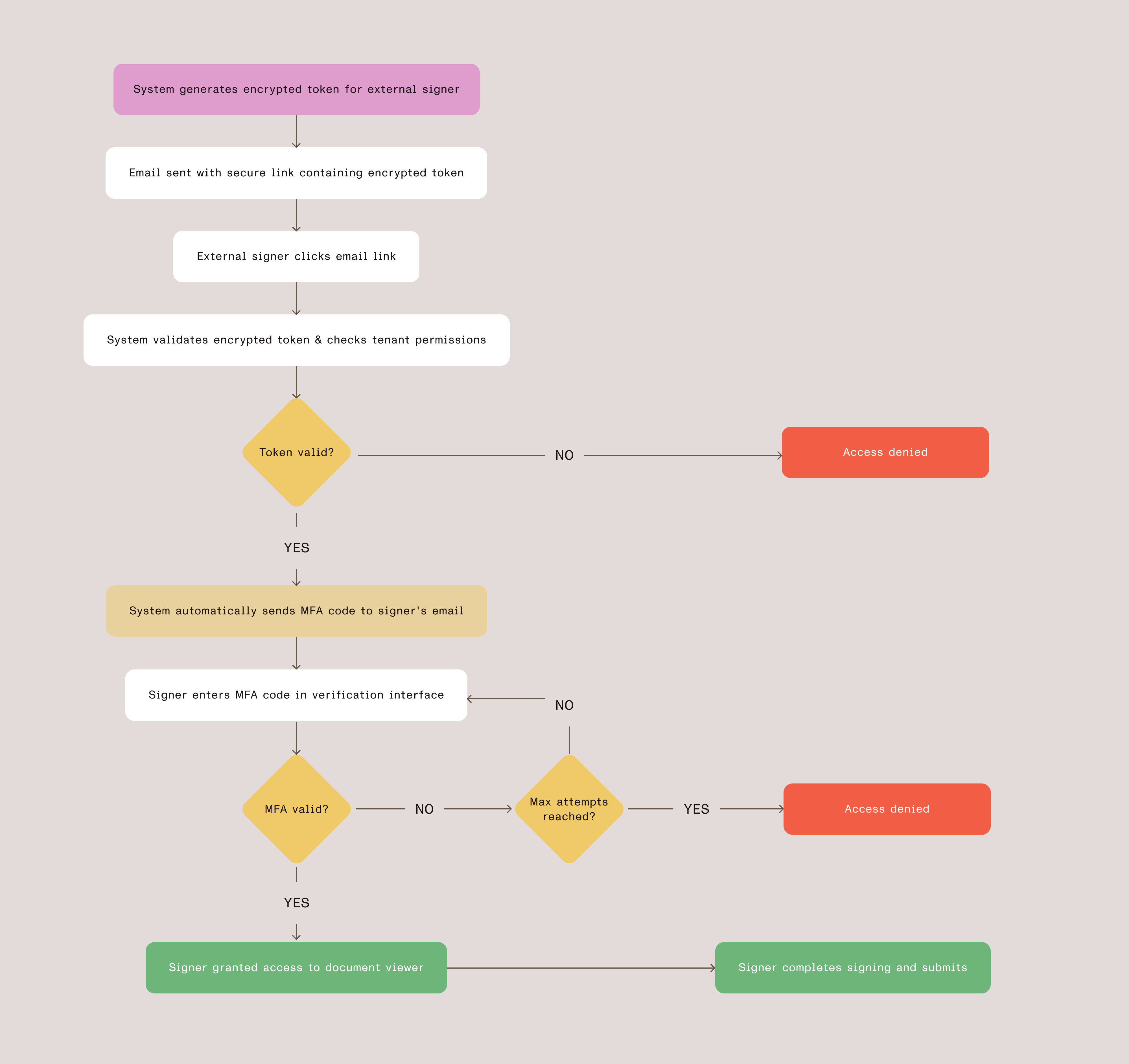

The following diagram shows how these three security layers work together to provide secure, passwordless access for external signers.

Security features in detail

Behind each layer of our authentication system are carefully designed security mechanisms that work together to protect document access. The following sections will examine the specific features that make this system both secure and maintainable, from cryptographic validation to session management.

Token encryption and validation

Our token system uses multiple layers of validation:

MFA implementation highlights

The MFA system includes several security best practices:

• Rate limiting — Configurable maximum verification attempts per token
• Time expiration — Codes expire after a configurable time period
• Request throttling — Cooldown period between code requests
• Attempt tracking — System tracks all verification attempts for audit purposes

Session management

When a signer accesses the system, we validate their encrypted token and verify tenant permissions before granting access. This ensures that only authorized signers with proper licensing can view and sign documents:

async function validateEncryptedToken(encryptedToken) {
  // Decrypt and validate token structure.
  const parsed = await this.decryptSigningData(encryptedToken);

  // Verify tenant permissions.
  const hasSignaturePermission = await config.checkModule(
    parsed.tenant, 'DigitalSignature'
  );
  const hasBasicPermission = await config.checkModule(
    parsed.tenant, 'DocumentSigning'
  );

  if (!hasSignaturePermission && !hasBasicPermission) {
    throw new Error('Insufficient permissions');
  }

  return parsed;
}

User experience flow

From the signer’s perspective, the process is straightforward:

1. Receive email — Signer gets notification with signing link
2. Click link — Browser opens to verification page (no login required)
3. Enter MFA code — System automatically sends verification code to their email
4. Access document — After verification, signer sees the document in our web viewer
5. Complete signing — Signer adds their signature and submits
6. Confirmation — System shows completion message and can close the window

Technical benefits

This architecture provides several technical advantages, outlined below.

Scalability

• Stateless design — No server-side sessions to manage
• Redis caching — MFA codes stored in fast, distributed cache
• Token-based access — Eliminates need for user account management

Security

• Zero knowledge — External signers never see system credentials
• Audit trail — Every access attempt and signature action is logged
• Isolation — Each signing session is completely independent

Maintainability

• Modular design — MFA, encryption, and signing logic are separate concerns
• Configuration-driven — Administrators can adjust security parameters
• License integration — Respects existing permission systems

Real-world impact

Since implementing this system, we’ve seen a positive impact in the following areas:

Implementation considerations

For organizations implementing similar systems, focus on these key areas. Success requires balancing strong security foundations with thoughtful user experience design, while maintaining flexibility to adapt to different document sensitivity levels and use cases.

Layered approach

• Strong cryptographic foundations with proper key management
• Well-designed user interfaces that guide users through the process
• Continuous monitoring and improvement based on usage patterns

Security balance

• Rate limiting and attempt tracking to prevent abuse
• Configurable security parameters based on document sensitivity
• Fallback mechanisms for accessibility and edge cases

User experience

• Clear communication about the authentication process
• Mobile-optimized interfaces for various device types
• Helpful error messages and recovery options

Conclusion

Passwordless authentication for external signers addresses the challenge of balancing security with user experience. This layered approach — encrypted tokens, multi-factor authentication, and thoughtful interface design — provides secure access without requiring account creation.

The key insight is that security doesn’t have to come at the expense of usability. With careful architecture and implementation, you can create systems that are both more secure and more user-friendly than traditional approaches.

For organizations implementing similar systems, focus on the layered approach: strong cryptographic foundations, well-designed user interfaces, and continuous monitoring and improvement. The result is a system that users trust and administrators can confidently deploy for sensitive business processes.
