Retrieve or set the annotation bounding box in React Native

Each annotation has a size and a position, known as the annotation’s bounding box. To access the bounding box of a given annotation, you need to call getAnnotations(type) or getAnnotationsForPage(pageIndex, type) to get the annotation. Then you can access its bounding box (bbox). The value of the bounding box is a rect array instance, which holds the annotation’s size and position in PDF coordinates.

The example below shows how to add a button that displays an alert with the value of the bounding box of the first ink annotation on the first page of the document:

...
export default class App extends Component<{}> {
  render() {
    return (
      <View style={{flex: 1}}>
        <PSPDFKitView
          document={DOCUMENT}
          ref="pdfView"
          fragmentTag="PDF1"
          style={{flex: 1}}
        />
        <View
          style={{
            flexDirection: 'row',
            height: 60,
            alignItems: 'center',
            padding: 10,
          }}>
          <View>
            <Button
              onPress={async () => {
                // Get all ink annotations from the first page of document.
                const inkAnnotationsJSON = await this.pdfRef?.current?.getDocument().getAnnotationsForPage(
                  15,
                  'pspdfkit/ink',
                );


                const inkAnnotationsArray = inkAnnotationsJSON['annotations'];
                const firstInkAnnotation = inkAnnotationsArray[0];
                const boundingBox = firstInkAnnotation['bbox'];


                // Show an alert with the first ink annotation’s bounding box.
                alert(JSON.stringify(boundingBox));
              }}
              title="Show bounding box"
            />
          </View>
        </View>
      </View>
    );
  }
}
...

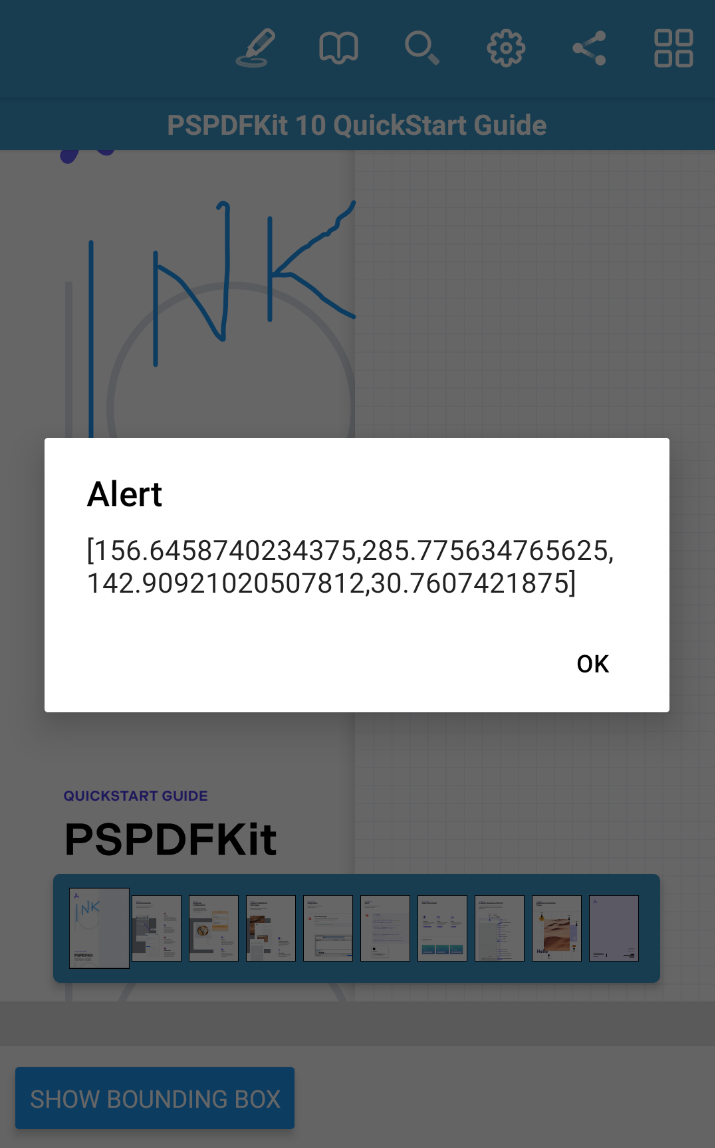

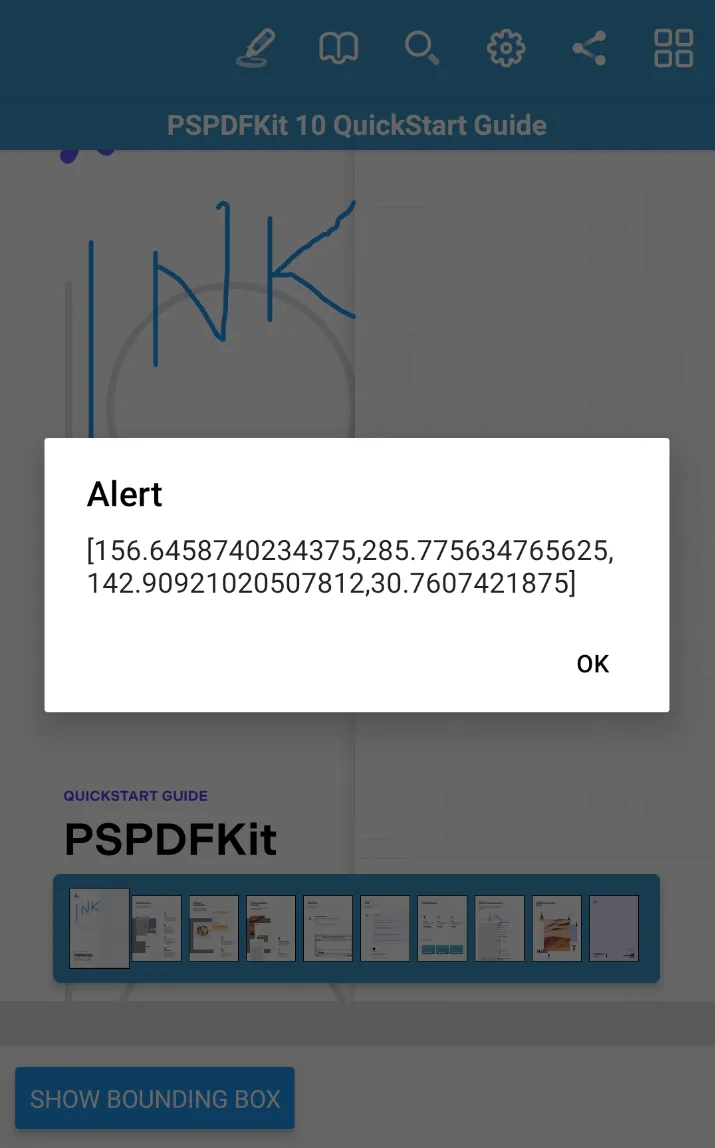

bounding box alert
