Creating a custom annotation toolbar for mobile devices

Markdown version of this page, suitable for AI agents and automation

You can have a separate UI for mobile devices to make sure you get the most from limited space.

Launch Demo

The built-in items are shown in two levels in the mobile view. The first level shows the icon for a particular tool item, and when you click on it, you get the full view of that item.

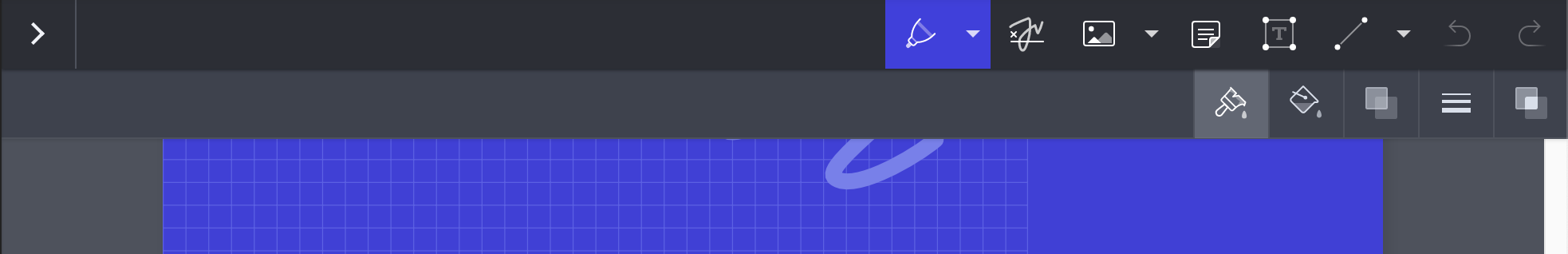

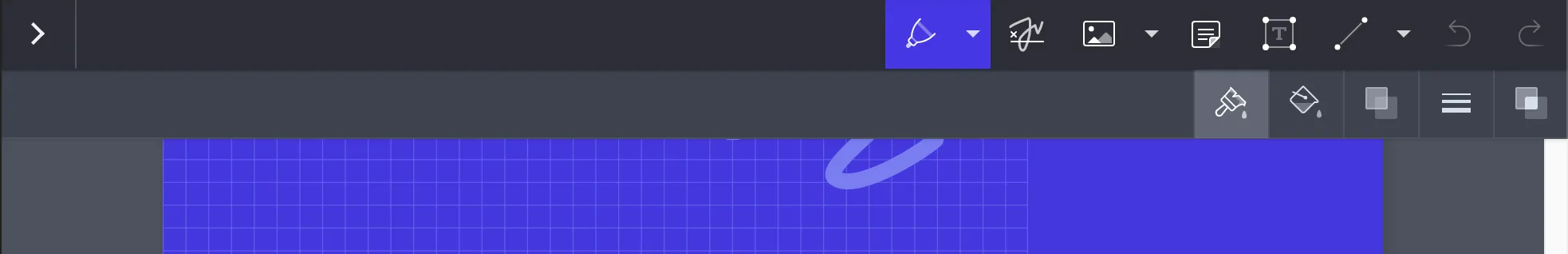

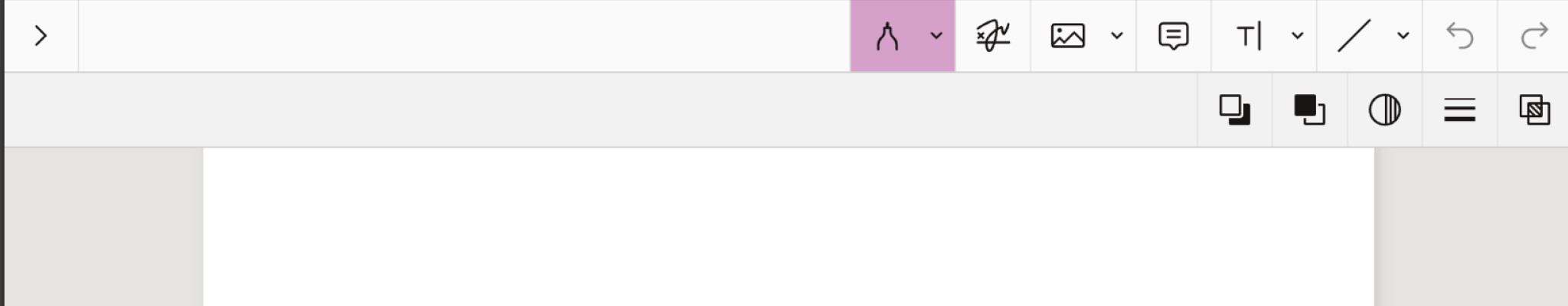

Web annotation toolbar in mobile view, with the first level showing each ink property as an icon only

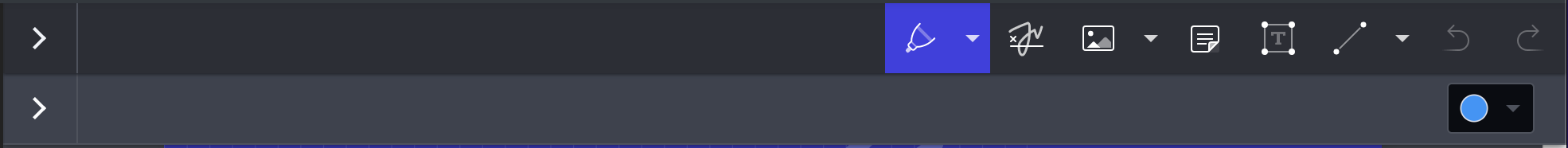

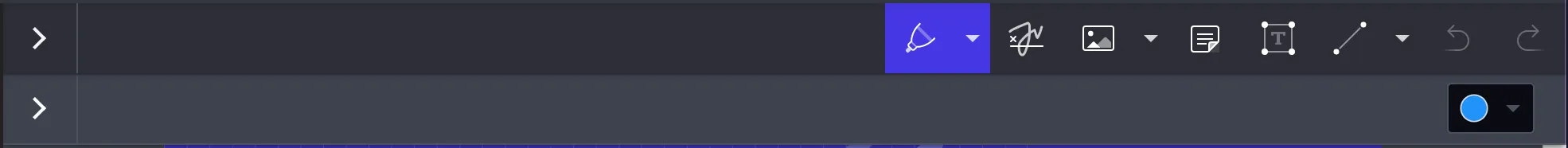

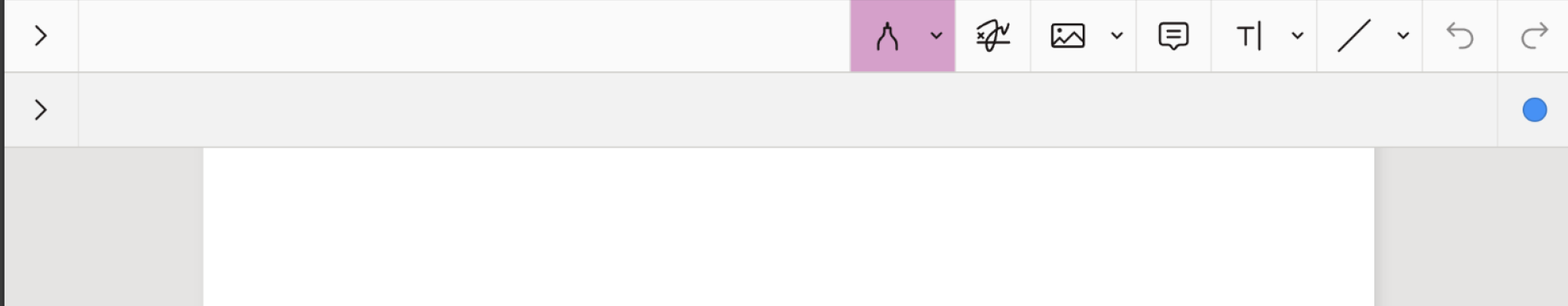

Web annotation toolbar in mobile view after opening an item, showing its second-level color control

You can achieve something similar using the icon property of NutrientViewer.AnnotationToolbarItem:

const selectNode = document.createElement("select");


selectNode.innerHTML = `
  <option value="alice">Alice</option>
  <option value="Bob">Bob</option>
  <option value="carol">Carol</option>
  <option value="john">John</option>
`;


selectNode.addEventListener("change", (event) => {
  console.log(`Selected option: ${event.target.value}`);
});


const item = {
  type: "custom",
  id: "my-button",
  icon: `<svg xmlns="http://www.w3.org/2000/svg" height="24" width="24" fill="none" viewBox="0 0 24 24" stroke="currentColor">
           <path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M4 8V4m0 0h4M4 4l5 5m11-1V4m0 0h-4m4 0l-5 5M4 16v4m0 0h4m-4 0l5-5m11 5l-5-5m5 5v-4m0 4h-4" />
         </svg>`,
  node: selectNode,
  onPress: (event) => {
    alert("hello from my button");
  }
};


instance.setAnnotationToolbarItems(
  (annotation, { defaultAnnotationToolbarItems }) => {
    return [...defaultAnnotationToolbarItems, item];
  }
);

If you use the above code, here’s what will happen.

  • On a desktop:
  • For a mobile layout:
    • The icon will be rendered on the first level, and the node will be rendered when you click on that icon.
    • If you haven’t passed icon, the node will be rendered on the first level.

There might be situations where you want to pass different nodes based on whether the device has a mobile layout or not. You can use the hasDesktopLayout property passed in the callback to do that:

instance.setAnnotationToolbarItems(
  (annotation, { defaultAnnotationToolbarItems, hasDesktopLayout }) => {
    return hasDesktopLayout
      ? [...defaultAnnotationToolbarItems, item]
      : defaultAnnotationToolbarItems;
  }
);
